Delivery
Confirmed when the order is placedThe delivery time is confirmed to you when your order is approved. This product is heavy and bulky, so it is shipped by freight; freight costs within Türkiye are covered by us.
Well Water Treatment System
₺147,055.20
VAT included · Free freight delivery
This product is heavy and bulky, so it is shipped by freight; freight costs within Türkiye are covered by us.
Ordering from outside Türkiye
Online payment is only available for delivery addresses in Türkiye. For orders from abroad, we prepare a price quote.
- Shipping, customs duties and any taxes are paid by the buyer.
- Payment is made by bank transfer after a proforma invoice.
- Delivery time and shipping method are agreed together in the quote.
Your location:
Free Freight Delivery
Across Türkiye
Lead Time
Confirmed when the order is placed
2-Year Warranty
Misuse is not covered.
Order by Phone
0850 304 95 25
- SKU
- WP-KS-008
- Category
- Well Water Treatment, Industrial Water Treatment, UV Water Treatment
Complete System · Analysis-Led · Automatic
Well Water Treatment System
Well Water Treatment is a complete solution that makes the raw water from a well usable by clearing it of sand, limescale, odour and microbiological risk; it is built by bringing together chlorine dosing, fully automatic sand and activated carbon units, flow-controlled softening and an ultraviolet stage according to the raw water analysis.
- Construction
- Complete System
- Design
- Led by the Water Analysis
- Operation
- Fully Automatic
01Problem & Solution
Every Well’s Water Is Different
Problem
One Filter Is Not Enough
Well water can carry sand, silt, rust, turbidity, high hardness, bad odour, organic contaminants and microbiological risk all at once. Each of these calls for a different treatment stage; no single filter deals with them all.
Solution
A System Built from the Analysis
In a Well Water Treatment system the stages are chosen from the raw water analysis. Chlorine dosing, sand, activated carbon, softening and ultraviolet work together to bring the water up to a usable standard.
02Key Features
Staged, Automatic, Built to the Project
A Well Water Treatment system is put together to make the water from a well safely usable.
Chlorine Dosing
Chlorine is dosed into the raw water under control, settling out suspended matter and delivering microbiological safety.
Fully Automatic Sand Unit
It captures sand, silt, rust and turbidity, and cleans itself by backwashing.
Fully Automatic Carbon Unit
It removes the remaining chlorine, off-taste, odour, colour and organic contaminants by adsorption.
Flow-Controlled Softening
It removes the hardness that runs high in well water using resin that regenerates on actual consumption.
Ultraviolet Treatment
At the final stage the UV unit inactivates the microorganisms in the water without chemicals.
Configured to the Project
The stages and equipment sizes are determined by the raw water analysis report and the daily water capacity.

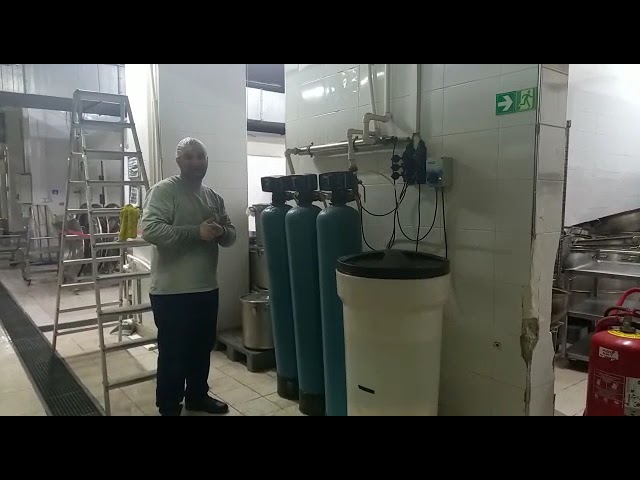

Product Video
Take a Closer Look at the System
03Technical Specifications
System Details
| Feature | Value | What it does |
|---|---|---|
| System Type | Complete Well Water Treatment | The main problem the system solves. Pick the wrong type and the water does not improve. |
| Pre-Oxidation | Chlorine Dosing | |
| Filtration | Sand + Activated Carbon | How many stages the water passes through and what cleans it. |
| Limescale Stage | Flow-Controlled Softening | |
| Final Stage | Ultraviolet Treatment | |
| Capacity | To Project | How much water the unit can handle. Choosing above your need does not strain it; choosing below it does. |
| Weight | 75 kg | Product weight. For wall mounting, the supporting surface is chosen accordingly. |
| Dimensions | 60 × 150 × 170 cm | The outer dimensions of the unit. The cabinet or plant room has to be wider than this. |
04Applications
Where Is It Used?
A Well Water Treatment system is installed anywhere there is no mains supply or well water is used.
- Detached Houses & Villas
- Residential Complexes
- Factories
- Hotels & Facilities
- Farms
- Agricultural Businesses
- Construction Sites
- Settlements Off the Mains
05How It Works
How Does Well Water Treatment Work?
Chlorine Dosing
Chlorine is dosed under control into the raw water coming from the well; suspended matter settles out and microbiological safety is delivered.
Filtration in the Sand Unit
Sand, silt, rust and turbidity are captured, and the unit backwashes itself clean at set intervals.
Adsorption on Activated Carbon
The remaining chlorine, off-taste, odour, colour and organic contaminants are captured in the carbon bed.
Hardness Removal at the Softener
The flow-controlled unit takes calcium and magnesium out with resin, protecting plumbing and equipment.
Ultraviolet Treatment
At the final stage the UV unit inactivates the microorganisms and the water goes into use.
06Making the Right Choice
What Decides the Right System
The most critical inputs to a Well Water Treatment system are the raw water analysis and the daily capacity requirement.
Raw Water Analysis Report
Hardness, iron, manganese, turbidity and microbiological readings directly determine which stages are chosen.
Daily Water Capacity
The daily volume to be used determines the unit sizes and vessel volumes.
Intended Use
Whether the water is for drinking, general use or process work changes the level of treatment required.
Space and Tanks
Space for the units, the raw water tank and the treated water tank should be planned in advance.
07Maintenance and Use
Notes That Keep the System Running
- The salt level at the softening stage should be checked regularly and topped up as it falls.
- The activated carbon should be renewed periodically, and the backwash settings on the sand and carbon units checked.
- The lamp at the ultraviolet stage should generally be changed once a year, and the quartz sleeve kept clean.
- Well water quality can change with the seasons; system performance should be confirmed by periodic water analysis.
08Frequently Asked Questions
Common Questions
What does a Well Water Treatment system do?
It takes the raw water from a well through a staged process to make it usable. Sand, silt, limescale, odour, organic contaminants and microorganisms are each dealt with at their own stage.
Why is a water analysis needed first?
Every well’s water is different. Building the right system means knowing the raw water analysis report and the daily volume to be used; the choice of stages and the equipment sizes follow from that data.
What units make up the system?
The complete system consists of chlorine dosing, a fully automatic sand unit, a fully automatic activated carbon unit, a flow-controlled water softener and an ultraviolet unit. The final combination is built from the analysis.
Is it hard to maintain?
Because the sand and carbon units backwash automatically, the system largely looks after itself. Routinely, watching the softener salt, renewing the carbon and changing the UV lamp is all it takes.
Does the well water become drinkable?
The system treats the water to a usable standard. Whether it can be used for drinking is assessed from the readings in the raw water analysis and the level of treatment aimed for, which is why the analysis report is critical.
To write a review, please log in to your account. If you don't have an account, you can create one on the same page.
Questions & Answers
Questions asked about this product
Questions on compatibility, capacity and installation are answered by our technical team. The answers stay public — so the next person with the same question can see them too.
No questions have been published for this product yet. You can be the first to ask.
Installation and commissioning
Installation is a service · plumbing is the customer’s responsibilityThe system is delivered ready to install; it only needs to be connected to the inlet and outlet lines. If valve setup is required, we provide free support over a video call. Installation and commissioning fall under our service work and are subject to a service fee. Plumbing labour and any pipes, valves and fittings are not included in the price; these items are the customer’s responsibility.
Warranty
2 years · manufacturerThis product is covered by a 2-year manufacturer warranty. During the warranty period, labour and parts are free for faults arising from manufacture. Consumables such as filters, membranes and resin are outside warranty cover — they are replaced when their service life ends; they do not fail.
Site Survey
Free when the system is bought from usThe site survey is free when the system is purchased from us. A survey fee of ₺2,000 applies if you request the survey and measurement only.
Withdrawal and returns
Distance sales agreementThe right of withdrawal and the return terms are set out in detail in the distance sales agreement. Systems that have been installed and commissioned, and made-to-order products, are outside its scope.
